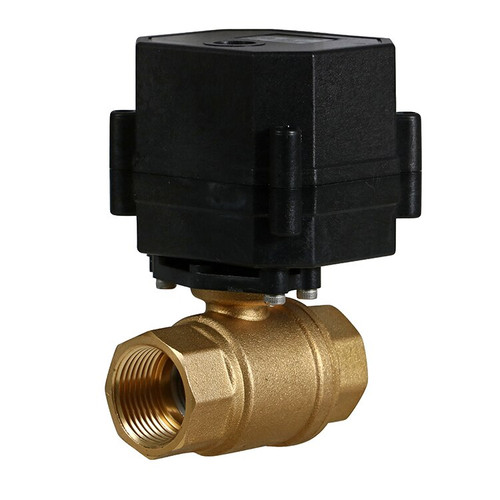

1" Brass Electric Ball Valve - 3 Wire
Availability: In Stock
Technical Details
SKU
BVB6CV-XR33-J
Port Size
1" Female NPT
Wiring Type
3-Wire Power-driven open and close
Actuator
XR33 - 3 Wire
Actuation Method
Direct motor-driven
Voltage Range
9 to 24V AC/DC
Body Material
Brass
Components
Stainless Steel
Seal Material
FKM (Viton® equivalent)
Ball Seat
PTFE
Gears
Metal
Bore Type
Full
Flow
Bi-Directional
Media Temperature
35 - 200° F / 2 to 90°C
Ambient Temperature
5 - 120°F / -15 to 50 °C
Pressure Range
0 - 185 PSI (No Minimum)
Max Torque
3 Nm
Actuator Connection
Lead Wires
Closing / Opening Time
≤5 Seconds
Working Current
≤500 mA
Duty Cycle
100% Duty at Rated Ambient Temperature
*Suitable Media
Water – Air - Fuel - *Etc
Enclosure Rating
IP67 (NEMA 4 equivalent)
Min. Energized Cycle
60 Seconds
Weight
1 lb 3.6 oz
Height
4.37"
Length
2.80" port to port
Width
2.56" (actuator)
Life Expectancy
70,000 Cycles
Fail position
Last position on power loss
Recommended Maximum Cycling Rate
≤ 3 cycles / min
Product Overview
9 to 24V AC/DC (auto detects voltage)
Electric Ball Valves make an excellent alternative to solenoid valves. This type of valve requires little power, can be installed outdoors and allows a full flow. The ball can make a full 90° rotation in about 4-5 seconds. This slow open/close time eliminates water hammer. Ball valves also work in both directions making them bi-directional. This specific valve has a 1” FNPT male and female port side. The body is made of brass, the ball is stainless and the sealing materials are a combination of Viton and PTFE. The motor is in a weather safe housing allowing it to be installed outdoors or in wet locations. The housing is rated NEMA 4 or IP67 equivalent.
The XR33 actuator that controls the valves position is configured with 3 separate wires. The black or neutral wire is connected to the ground. The red or positive wire is connected to the power. The green wire is the control wire that will change the position when power is applied or removed.
*Consult a chemical compatibility expert for correct seal and valve body material choice.
Warranty
Electricsolenoidvalves.com guarantees our valves to be free from defects in workmanship and materials under normal use for One year from the date of purchase. For complete terms of this warranty see our Warranty Terms & ConditionsRelated Products
-
-
