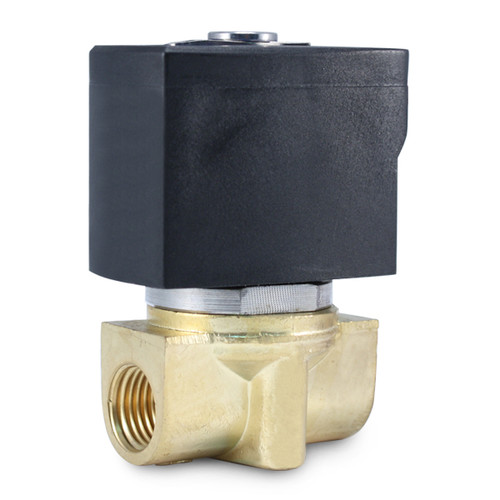

1/4" 110V AC Electric Brass Solenoid Valve
Availability: In Stock
Technical Details
SKU
RSSM-3-110VAC
Position
Normally Closed
Port Size
1/4" Female NPT
Voltage
110V AC
Body Material
Brass
Components
Stainless Steel
Seal Material
Viton® Diaphragm
Orifice Size
3 mm
Temp Range
15 to 250° F / -10 to 120°C
Pressure Range
Air: 145 psi | Water: 115 psi | Light Oil: 70
Flow Rate
Cv 0.4 (Appx 3 GPM @ 60 PSI)
Power
10 VA
Coil Connection
Lead Wires
Response Time
Fast Acting (Less than one second)
Duty Cycle
100% but not indefinitely
*Suitable Media
Water – Air - Fuel - *Etc
Weight
10 oz
Height
2.62"
Length
1.60" port to port
Width
1.20"
Product Overview
RSSM-3 is currently our smallest brass bodied valve in our brass valve line. This quarter inch valve is a two-way, direct acting valve with a normally closed operating position. This means that there are two ports in which media flows and the valve will open when energized to allow media to pass through. Taking the energy away from the valve will close it and stop the flow. This 1/4 inch valve works ideally with air, other pneumatic applications as well as water. It works across various other low viscosity media such as hot water, gas, diesel fuel, alcohol, kerosene, Freon, weak acids and weak alkali. The valve features a heavy duty, solid brass body that’s sure to last in the most strenuous projects. The internal components feature SS304 parts and copper shading ring. It has a temperature range between 15°F and 250°F.
This specific valve has a port size that is 1/4” inch female NPT threaded which is US standard. The orifice size is 3mm and the CV value is 0.4. This valve is not recommended for gravity fed systems because of the small orifice size. The seal material is Viton® Rubber.
This specific valve has a 110 VAC coil with a voltage range that is -+ 10. The coil head is fitted with a 14’’ wire lead that can easily be connected with your own choice of terminals. The top of the coil features a label that indicates the valve type and specifications. Its response time is very low; in fact, it acts in less than one second, making it a great choice for all types of applications.
This model works best mounted in an upright position with the coil on top. The body features a stamped arrow on the valve body to indication the direction of flow. The valve body is threaded at the base and can quickly be mounted with 5mm machine screws.
Customers commonly use the RSSM-3 Valve for Water Filters, Ice Makers, Drinking Fountains, Washing Machines, Dishwashers, Dental Tools, Fish Tanks, Beer Brewing, Hydroponics, HVAC and Plumbing.
*Consult a chemical compatibility expert for correct seal and valve body material choice.
