What are Zero Differential Solenoid Valves?

A zero differential solenoid valve is a type of solenoid valve that can open and close even when there is no pressure difference across the valve. This is different from standard solenoid valves, which require a minimum pressure to open and close. Zero differential solenoid valves use mechanisms like springs or balanced poppets which allow them to function in low-pressure or gravity-fed systems.

Common Applications

These valves are great choices for challenging applications where low pressure or delicate flow control is required. You can find then used throughout a wide range of industries and applications that require precise flow control at low pressures such as:

• Irrigation Systems: They provide consistent water distribution in drip irrigation, sprinkler systems, and other agricultural setups, even under low water pressure.
• HVAC Systems: Used in heating, ventilation, and air conditioning systems to manage fluid flow efficiently during low-load conditions.
• Industrial Processes: They are used in various industrial processes such as chemical processing, food and beverage production, and pharmaceutical manufacturing to control the flow of liquids and gasses where pressure fluctuations could affect product quality.
• Medical Equipment: Zero differential valves are used in medical devices that require exact flow control at low pressures such as dialysis machines, anesthesia machines, and infusion pumps.
• Water Treatment: Used for chemical dosing in water purification systems where accurate low volume dispensing is required.
• Laboratory Applications: Their precise control and ability to handle delicate fluids make them useful for laboratory experiments and research.

How Zero Differential Solenoid Valves Work

Before we get into the mechanics of zero differential solenoid valves, we’ll go over some of the basics of traditional direct-acting solenoid valves. This will give us a foundation to understand the modifications that make zero differential operation possible. The section after that will explain the different types of zero differential solenoid valves and how they are able to function under no pressure,

Internal Components

• Solenoid Coil: An electromagnetic copper wire coil that, when energized, generates a magnetic field. This magnetic force pushes or pulls the plunger to open or close the valve.
• Valve Body: The main structure housing the internal components, typically made from materials like brass, stainless steel, or plastic.
• Plunger or Armature: A movable component inside the coil that is drawn into the solenoid coil when the magnetic field is activated, opening or closing the valve.
• Spring: Returns to its default position (normally open or normally closed) when the coil is de-energized.
• Seal: Provides a leak-tight closure when the valve is closed so that no fluid passes through.
• Valve Seat and Seal/Disc: The valve seat is the stationary part that creates a seal when the seal/disc (attached to the plunger) rests against it, preventing fluid flow.

Step-by-Step Operation

(Normally Closed Valve)

1. Initial State: The valve is closed, with the plunger or diaphragm seated against the orifice.
2. Energization: Electric current flows through the solenoid coil.
3. Magnetic Field Generation: The coil creates a magnetic field.
4. Plunger/Diaphragm Movement: The magnetic field lifts the plunger or diaphragm.
5. Valve Opening: As the plunger/diaphragm lifts, it uncovers the orifice, allowing fluid flow.
6. De-energization: When the current is cut, the magnetic field collapses.
7. Valve Closing: The spring force returns the plunger/diaphragm to its seated position, closing the valve.

(Normally Open Valve)

1. Initial State: The valve is open, with the plunger or diaphragm lifted away from the orifice.
2. Energization: Electric current flows through the solenoid coil.
3. Magnetic Field Generation: The coil creates a magnetic field.
4. Plunger/Diaphragm Movement: The magnetic field pulls the plunger or diaphragm down.
5. Valve Opening: As the plunger/diaphragm moves down, it covers the orifice, stopping fluid flow.
6. De-energization: When the current is cut, the magnetic field collapses.
7. Valve Closing: The spring force lifts the plunger/diaphragm back to its open position, allowing fluid flow.

Now that we know how a solenoid valve works, let’s go over the options for zero differential valves and how they work.

Types of Zero Differential Solenoid Valves

There are a few ways to achieve zero differential operation:

Direct-Acting with Assisted Lift:

These work similarly to regular direct-acting solenoid valves. The solenoid coil creates a magnetic field that pulls the plunger (or armature) to open the valve against the force of a spring. The difference here is that the solenoids are larger, and stronger.

The stronger solenoid coil generates enough force to overcome the spring force and lift the plunger slightly, even with zero pressure differential. As the plunger lifts, it creates a small opening for fluid to flow through. This creates a pressure differential across the valve, which then assists in fully opening the valve against the remaining spring force. Once the valve is fully open, it can maintain flow even if the pressure differential drops to zero.

Pilot-Operated:

A pilot-operated solenoid valve has two main components:

• Main Valve: This is the larger valve that controls the main flow path. It has a diaphragm or piston as the closure member.
• Pilot Valve: This is a smaller, direct-acting solenoid valve that controls the pressure in a chamber above or below the main valve's diaphragm/piston.

When the pilot valve's solenoid coil is energized, the valve opens. This opening allows pressurized fluid to escape from the control chamber, reducing the pressure on one side of the main valve's diaphragm or piston. The resulting pressure differential across the main valve causes it to lift, opening the main valve and permitting fluid flow. When the pilot valve solenoid is de-energized, it closes, allowing pressure to build up in the control chamber again. This pressure forces the main valve's diaphragm or piston back down, closing the main valve.

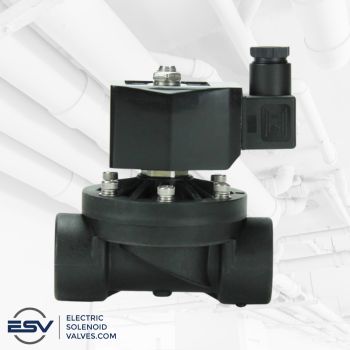

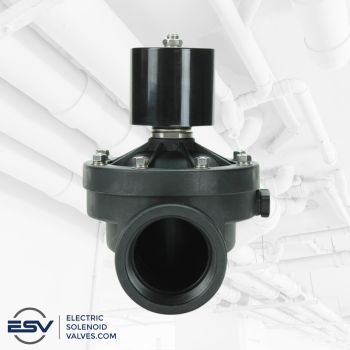

Semi-Direct Acting Solenoid Valves

Semi-direct acting solenoid valves (also known as internally piloted) combine aspects of both direct-acting and pilot-operated valves.

• Initial Lift: Like a direct-acting valve, the solenoid coil provides the initial force to lift the plunger (or diaphragm) a small distance.
• Internal Pilot: The initial lift of the plunger creates a small opening, allowing a portion of the fluid to flow through an internal pilot channel. This flow creates a pressure differential across the diaphragm or piston, assisting in fully opening the valve.
• Zero Differential Operation: Once open, the valve can maintain flow even if the pressure differential drops to zero, as the fluid flow itself helps to keep the valve open.

Advantages and Disadvantages of Each Type:

1. Direct-Acting with Assisted Lift:
   • Pros: Fast response, simple design, good for small flow rates
   • Cons: Higher power consumption, limited to smaller sizes
2. Pilot-Operated:
   • Pros: Can handle larger flow rates, lower power consumption
   • Cons: Slightly slower response, more complex design
3. Semi-Direct Acting:
   • Pros: Combines benefits of direct-acting and pilot-operated, versatile
   • Cons: More complex than direct-acting, may have specific pressure requirements

Zero Differential vs. Standard Solenoid Valves

Feature	Zero Differential Solenoid Valve	Standard Solenoid Valve
Minimum Operating Pressure	Very low to zero	Requires a minimum pressure difference to operate
Power Consumption	Higher (direct-acting) / Lower (pilot-operated and semi)	Higher
Response Time	Fast	Fast
Applications	Low-pressure systems, precise control, delicate fluids	General-purpose applications, higher pressure systems
Cost	Typically higher initial cost due to specialized design	Typically lower initial cost

The Science Behind Zero Differential Technology

• Balanced Forces: The core design innovation is the use of balanced poppet or spring mechanisms that negate the need for a pressure differential to open or close the valve. The forces acting on the plunger are carefully balanced, allowing the solenoid's magnetic force to control movement even at zero pressure
• Electromagnetism: The core principle behind solenoid valves is the interaction between electricity and magnetism. When an electrical current passes through a solenoid coil, it creates a magnetic field. This field can be used to attract or repel ferromagnetic materials, such as the plunger within the valve.
• Fluid Dynamics: The behavior of fluids, especially under low-pressure conditions, is crucial for understanding how zero differential valves function. Principles like pressure differentials, flow rates, and viscosity play a role in the valve's ability to open and close without external pressure assistance

Choosing the Right Zero Differential Solenoid Valve

When selecting a zero differential solenoid valve, consider the following factors:

• Pressure Rating: Determine the maximum and minimum operating pressures of your system. Ensure the valve you choose can handle these pressures without issue.
• Flow Rate: Calculate the required flow rate for your application and select a valve with a suitable Cv (flow coefficient) value.
• Pipe Size: Match the valve's port size to your piping system.
• Voltage and Power Requirements: Choose a valve that is compatible with your electrical system's voltage and power supply.
• Materials of Construction: Consider the type of fluid you'll be controlling and the operating environment. Select materials that are chemically compatible and resistant to corrosion or wear.
• Operating Environment: Factor in the ambient temperature, humidity, and any potential exposure to harsh chemicals or debris. Some valves are designed for specific environments.
• Normally Open/Closed: Determine whether you need a normally open (NO) valve, which is open in its resting state, or a normally closed (NC) valve, which is closed in its resting state.

Example Scenario

1. Irrigation System:
   • Pressure Rating: Low pressure (e.g., gravity-fed system).
   • Flow Rate: Moderate to high, depending on the size of the irrigation zone.
   • Pipe Size: Common sizes include 1/2 inch to 1 inch.
   • Voltage: 24V AC (common in irrigation controllers).
   • Material: Brass or plastic (resistant to outdoor conditions).
   • Environment: Outdoor use, exposure to weather elements.
   • Normally Closed: Keeps valve closed when the system is powered down.
   • Possible Recommendations:

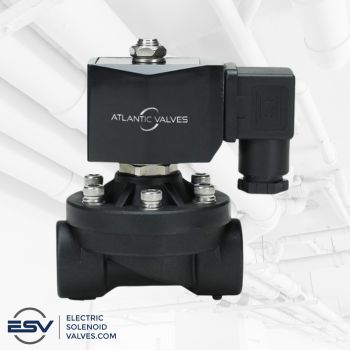

     • 1/2" Plastic Zero Differential Solenoid Valve - 24V AC
     • 3/4" Plastic Zero Differential Solenoid Valve - 24V AC

Conclusion
