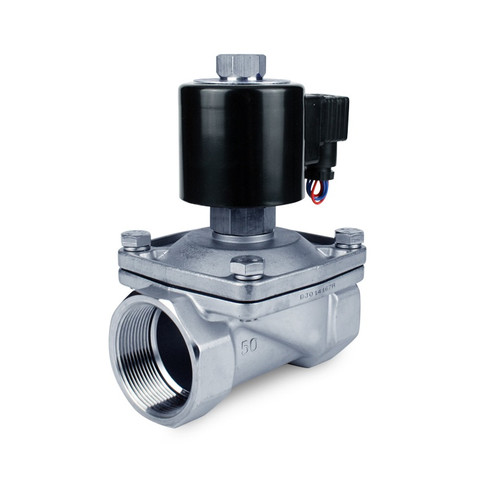

1-1/2" 12V DC Stainless Steel Solenoid Valve N/O
Availability: In Stock
Technical Details
SKU
SZW-40K-12VDC
Position
Normally Open
Port Size
1-1/2" Female NPT
Voltage
12V DC
Body Material
Stainless Steel 304
Components
Stainless Steel
Seal Material
Viton® Diaphragm
Orifice Size
40 mm
Temp Range
15 to 250° F / -10 to 120°C
Pressure Range
Water: 0-90 PSI | Air 7-90 PSI
Flow Rate
Cv 29 (Appx 220 GPM @ 60 PSI)
Power
40 Watts / 3.25 Amps
Coil Connection
DIN 43650A
Response Time
Fast Acting (Less than one second)
Duty Cycle
100% but not indefinitely
*Suitable Media
Water – Air - Fuel - *Etc
Weight
5 lbs 3 oz
Height
7.00"
Length
4.50" port to port
Width
3.25"
Product Overview
This is a 1-1/2" Stainless Steel Solenoid Valve that is Normally Open with female NPT ports. This valves position is Normally Open which means it will not close unless 3.25 amps of power is supplied from a 12 Volt DC power source. The valve will stay open and allowed media to pass. The valve body and components are constructed of Stainless Steel. The diaphragm is FKM or trade named Viton. Being constructed of these materials makes the valve suitable for a wide array of media types. This valve is 2 way which means it has an input and out put port, its function is uni-directional allowing media to flow only through the inlet and out of the outlet.
The included coil comes pre-wired and can be connected quickly to the power source. The coil itself is resistant to splashes but not intended for spray down or wet locations.\
This valve will operate within an ambient temperature range of 15 to 250°F or -10 to 120°C. Its pressure range is rated from 0 to 90 psi. This means the valve will work well in a gravity feed system where no pressure is supplied. A Y Strainer type filter is always recommended to be put in line before the valve to prevent any debris from intrude on the valves internals.
*Consult a chemical compatibility expert for correct seal and valve body material choice.
